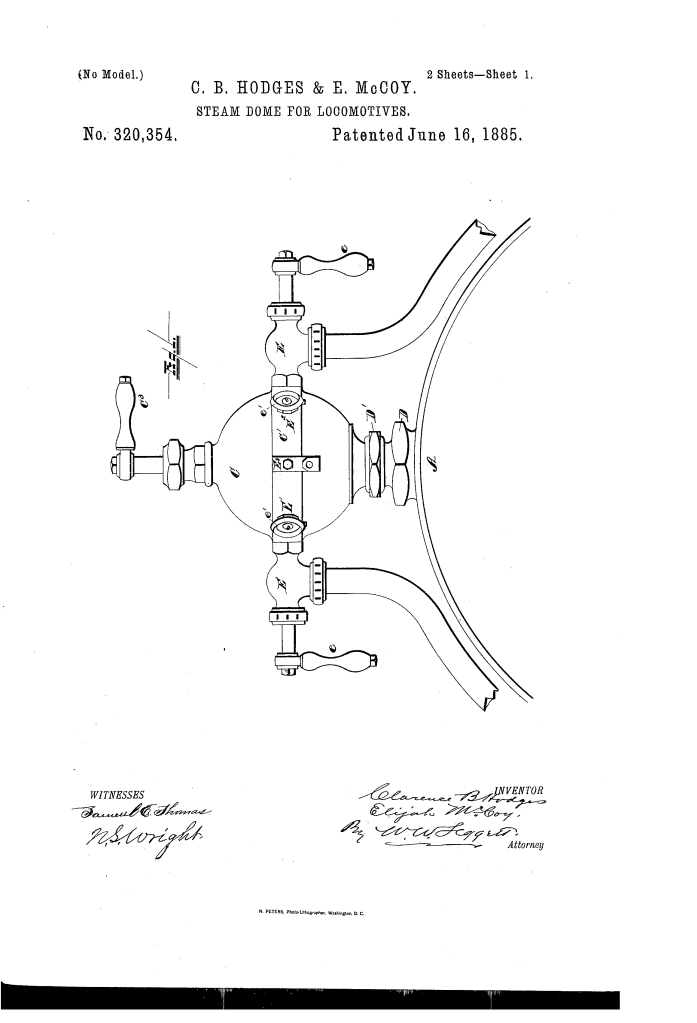

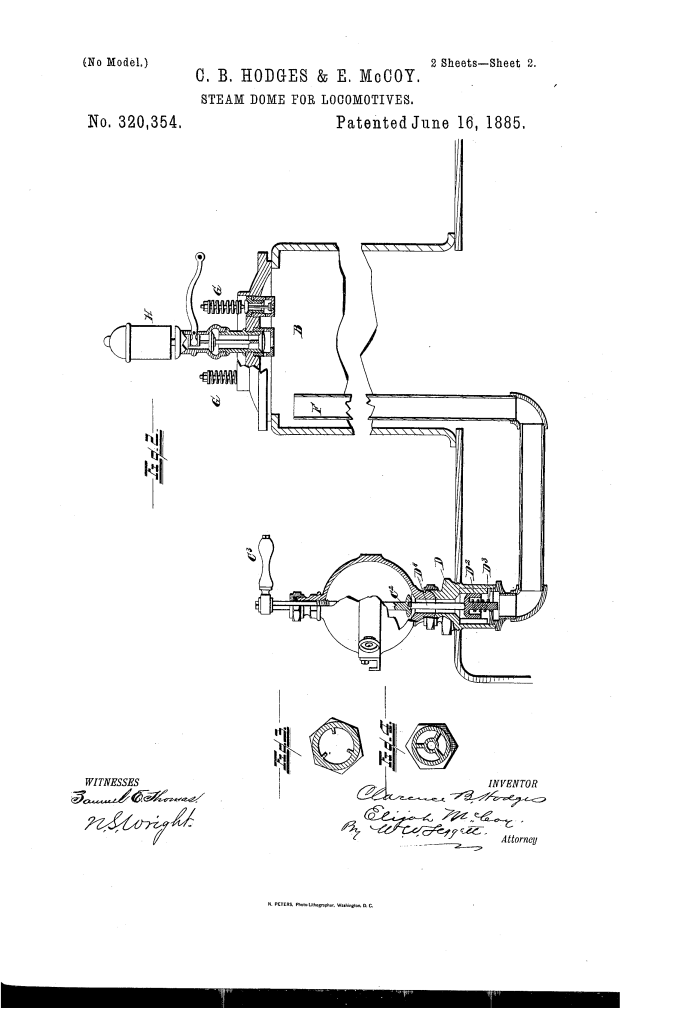

Clarence B. Hodges and Elijah McCoy’s patent for a “Steam-Dome for Locomotives”, No. 320,354, describes an innovative way to improve the safety and efficiency of locomotive boilers. Patented on June 16, 1885, the invention’s primary purpose was to consolidate the numerous steam connections that were typically tapped directly into a boiler’s shell.
Key features of the supplemental steam dome included:
- Consolidation of Connections: The invention was a single, strong, globular dome that was connected to the boiler via a single plug. All of the locomotive’s various steam attachments—for injectors, air brakes, blowers, and lubricators—were tapped into this supplemental dome, rather than the boiler shell itself. This prevented the boiler shell from being weakened by multiple holes.
- Security Valve: The plug connecting the supplemental dome to the boiler housed a security valve. This valve was designed to be held open by a stem that extended from a main valve above it. In the event of an accident that broke the supplemental dome off, the pressure on the valve would be relieved, causing it to instantly close and prevent steam and hot water from escaping and injuring the engineer and fireman.
- Dry Steam Pipe: The supplemental dome was connected to the main steam dome via a “dry pipe,” which ensured a constant supply of dry steam to all the connections. This was a crucial innovation that prevented water from entering the steam lines due to the “foaming and priming” of the boiler.
Societal Impact and Legacy
This patent is a powerful example of McCoy’s ingenuity and his ability to address major engineering problems in a practical, elegant way. It was a significant advancement in the safety and design of locomotive technology.
- Improved Safety and Reliability: The security valve was a major safety innovation that could prevent catastrophic accidents and protect the lives of railroad workers. By consolidating the steam connections into a single, strong dome, it also made the entire boiler system more reliable and easier to maintain.
- Industrial Design: The globular shape of the dome was specifically designed for uniform expansion and contraction, which reduced the risk of leaks and derangement. This attention to detail demonstrates the kind of thoughtful engineering that went into making a more durable and efficient product.
- The Inventor’s Legacy: Elijah McCoy, a prolific African American inventor, was a central figure in American industrial innovation. His work on this steam dome, alongside his famous lubricators, showcases his wide-ranging expertise in steam power and his foundational contributions to the railroad industry.
