Shutter Worker (1890)
U.S. Patent No. 433,819, granted on August 5, 1890, to Abraham Pugsley, introduces a mechanical solution to a common 19th-century domestic inconvenience: operating heavy exterior window blinds without opening the window itself.
In the late 1800s, window blinds (or “shutters”) were essential for security, privacy, and temperature control. However, opening or closing them required unlatching the window and leaning outside, exposing the interior to rain, snow, or insects. Pugsley, a resident of Jamestown, Rhode Island, developed a geared system that allowed for precise adjustment and locking of the shutter from the comfort of the indoors.
The Innovation: The Geared Shutter Worker
The brilliance of Pugsley’s design lies in its use of a right-angle gear transmission that converts the rotational motion of an interior hand-wheel into the swinging motion of the exterior blind.
1. The Power Train

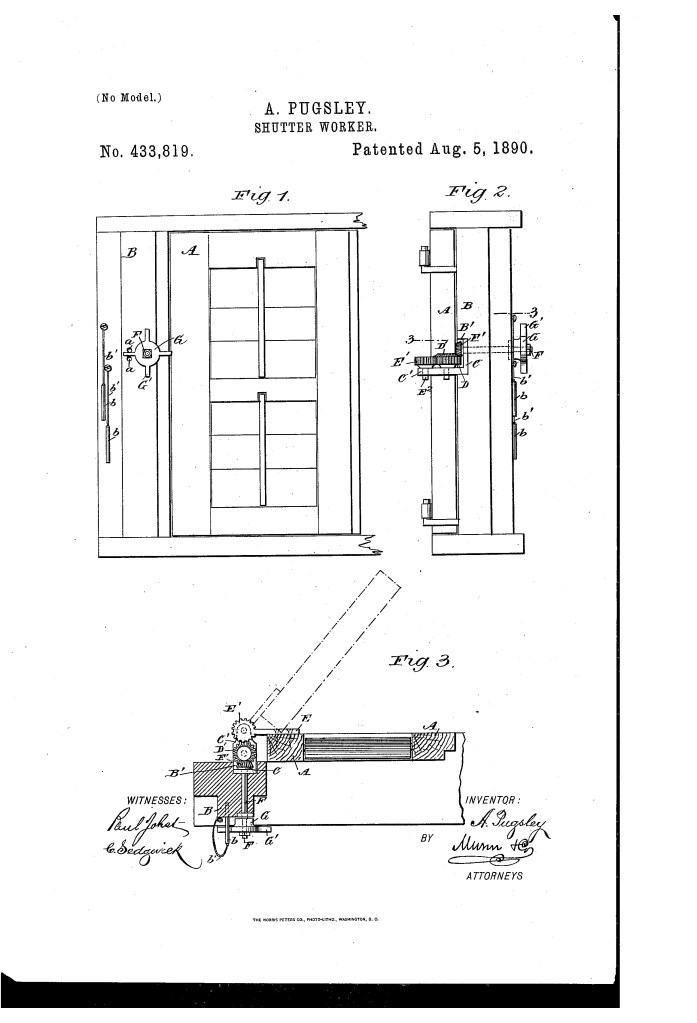

The device utilizes a horizontal shaft (F) that pierces through the window frame. On the interior end, the user controls a wheel (G) with radial arms. On the exterior end, a bevel pinion (F’) engages with a primary gear wheel (D), which in turn drives a gear (E) attached directly to the shutter’s hinge strap (E’).
2. The Integrated Hinge
Unlike later shutter workers that were separate from the hinges, Pugsley’s gear (E) featured a depending spindle that acted as the hinge pin. This allowed the blind to be lifted off its hinges for maintenance or cleaning without requiring the removal of the entire mechanical apparatus.
How the Device Functions
The operation is straightforward and mechanical, relying on a gear ratio that provides the leverage needed to move heavy wooden shutters.
| Step | Action | Mechanical Result |
| 1. Activation | The user turns the interior wheel (G) using the radial arms. | Rotation is transferred through the window frame via shaft (F). |
| 2. Transmission | The bevel pinion (F’) turns the horizontal gear (D). | The 90-degree change in gear direction converts the shaft’s rotation to a flat plane. |
| 3. Execution | Gear (D) meshes with gear (E) on the shutter strap. | The shutter swings open or closed depending on the direction of the turn. |
| 4. Locking | A pin (b’) is inserted into holes (a) in the frame. | The pin blocks the radial arms of the wheel, freezing the shutter in place. |
Key Technical Components
- Radial Arm Wheel (G): The interior interface. The arms provide grip for the hand and serve as the locking points for the security pins.
- Bevel Pinion (F’): A specialized gear that allows power to be transferred at a right angle, bridging the gap between the interior shaft and the exterior hinge.
- Angular Plate (C): A mounting bracket fixed into a recess in the window frame that holds the gears in perfect alignment.
- Locking Pins (b’): Simple but effective safety devices suspended by cords (b) to ensure they are never lost. They allow the shutter to be locked “cracked” for airflow while remaining secure against intruders.
Performance: Security and Comfort
Pugsley’s patent emphasizes that the device isn’t just for opening and closing; it is a fastening device.
- Weather Protection: By operating the shutters from the inside, the homeowner avoids letting in the elements.
- Variable Positioning: Unlike simple latches that only hold a shutter fully open or fully closed, the gear-and-pin system allows the blind to be secured at any angle. This is particularly useful for “forming a convenient shade and admitting a free circulation of air.”
- Mechanical Advantage: The gear system ensures that even if a strong wind catches the shutter, the internal mechanism resists the force, preventing the shutter from slamming.
About the Inventor: Abraham Pugsley
Abraham Pugsley was an inventor based in Jamestown, Rhode Island, during the height of the Victorian era’s architectural boom.
- Context: His work reflects the transition of the home from a purely functional shelter to a place of “modern” mechanical convenience.
- Mechanical Focus: Pugsley’s design prioritized durability and “No Model” simplicity, meaning it was designed to be manufactured easily using standard cast-iron techniques of the era.
- Legacy: While automated window systems today are electronic, Pugsley’s geared approach remains the fundamental mechanical precursor to manual crank-operated windows still found in many homes today.
Summary of Claims
The patent explicitly claims:
- An angular plate with a horizontal portion placed adjacent to the shutter.
- The use of bevel gears to translate motion through a window frame.
- The radial-armed wheel and pin system used to fix the blind in any desired position, providing both security and adjustable ventilation.
