Shower Bath Spray, Theophilus Ealey Neal, Patent No. 1,893,435
The patent by Theophilus Ealey Neal of Prairie View, Texas describes a Shower Bath Spray (Patent No. 1,893,435). This invention is an adjustable, multi-zone hydrotherapy system featuring an integrated safety shut-off. It allows a user to toggle water flow between a shoulder-level annular ring (to keep the hair dry) and a central overhead nozzle, while utilizing a thermostatic element to prevent accidental scalding.
The “Why”
In the early 1930s, shower technology was rudimentary. Most showerheads were fixed “roses” that saturated the entire body and head simultaneously. This presented two “pain points”: first, the inconvenience of wetting one’s hair when only a body wash was desired; and second, the extreme danger of sudden temperature spikes. Because water heaters of the era were inconsistent, a person could be trapped under a stream of scalding water if the cold-water pressure dropped. Neal’s invention provided personal grooming control and automatic life-safety protection.
Inventor Section: Theophilus Ealey Neal
As a specialist in steam and fluid dynamics (as seen in his Automatic Blow Off patent), Neal applied rigorous industrial engineering to household comfort. His engineering philosophy prioritized thermal intelligence. By incorporating a thermostat directly into the shower’s “brain” (the housing), he transformed a simple plumbing fixture into a smart safety device, reflecting a deep concern for the physical well-being of the end-user during the Industrial Revolution’s shift toward modern home amenities.
Key Systems Section
1. Annular Spraying Chamber (Dry-Hair Zone)

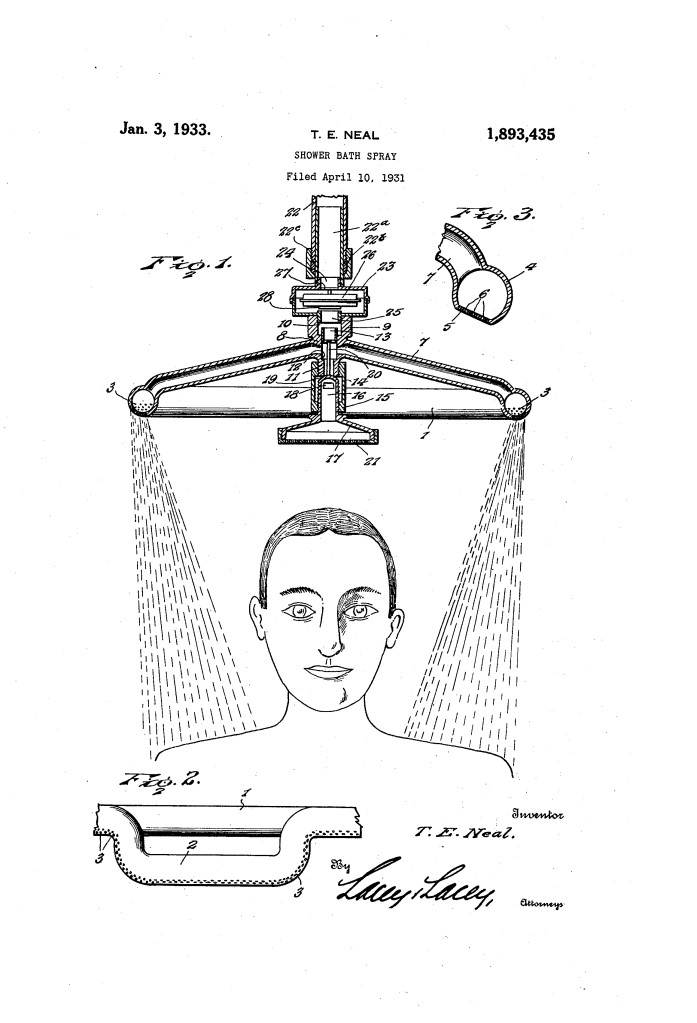

The primary feature is a large circular ring of tubing (1) with vertical perforations (3).
- Modern Engineering Term: Perimeter-flow manifold.
- This ring creates a “hollow” wall of water. By standing in the center, the water strikes the shoulders and torso but leaves the head in a dry “void.” Neal even included a downward-flared section (2) at the front to ensure no stray droplets would hit the user’s face.
2. Synchronized Sleeve Valve & Nozzle
The central nozzle (17) is not just a secondary sprayer; it is the control interface for the entire system.
- Modern Engineering Term: Coaxial diverting valve.
- By rotating the nozzle (17), the user moves a threaded stem (16) and an internal sleeve valve (13).
- Nozzle Up: Water is blocked from the center and diverted to the outer ring.
- Nozzle Down: The sleeve blocks the ring arms (7) and sends all water to the head-wash nozzle.
- Mid-Position: Provides a full-body soak from both sources.
3. Thermostatic Scald Protection
Hidden in the upper supply housing (23) is a sensitive thermostat (26).
- Modern Engineering Term: Passive thermal-actuated shut-off.
- This component acts as a “dead-man’s switch” for heat. If the water temperature reaches a dangerous level, the thermostat expands, pushing a closure element (28) against the intake. This mechanically kills the water flow before it can reach the user’s skin, effectively preventing second or third-degree burns.
4. Telescopic Height Adjustment
To accommodate users of different statures, Neal designed the supply pipe to be adjustable.
- Modern Engineering Term: Telescopic slip-joint.
- The pipe uses a packing (22b) and gland (22c) system, allowing the entire spray assembly to slide vertically without leaking, ensuring the “dry head” zone remains at the correct height for children and adults alike.
Comparison: Standard Showerhead vs. Neal’s Safety Spray
| Feature | Standard 1930s Shower | Neal’s Multi-Zone Spray |
| Water Target | Indiscriminate saturation. | Selective zones (Body only or Head only). |
| Safety | Manual mixing only; high scald risk. | Automatic thermostatic shut-off. |
| Adjustability | Fixed height. | Telescopic vertical adjustment. |
| Control | External wall valves. | Integrated nozzle-turn diverter. |
Significance
- Precursor to Modern “Rain” Showers: The large annular ring is a direct mechanical ancestor to the luxury rain-heads used in modern bathrooms.
- Foundational Safety Standards: Neal’s thermostatic shut-off is the early intellectual forebear to modern anti-scald valves required by international building codes today.
- Ergonomic Design: By integrating the diverter into the nozzle itself, Neal simplified the user interface, a principle now standard in multi-function handheld shower units.
