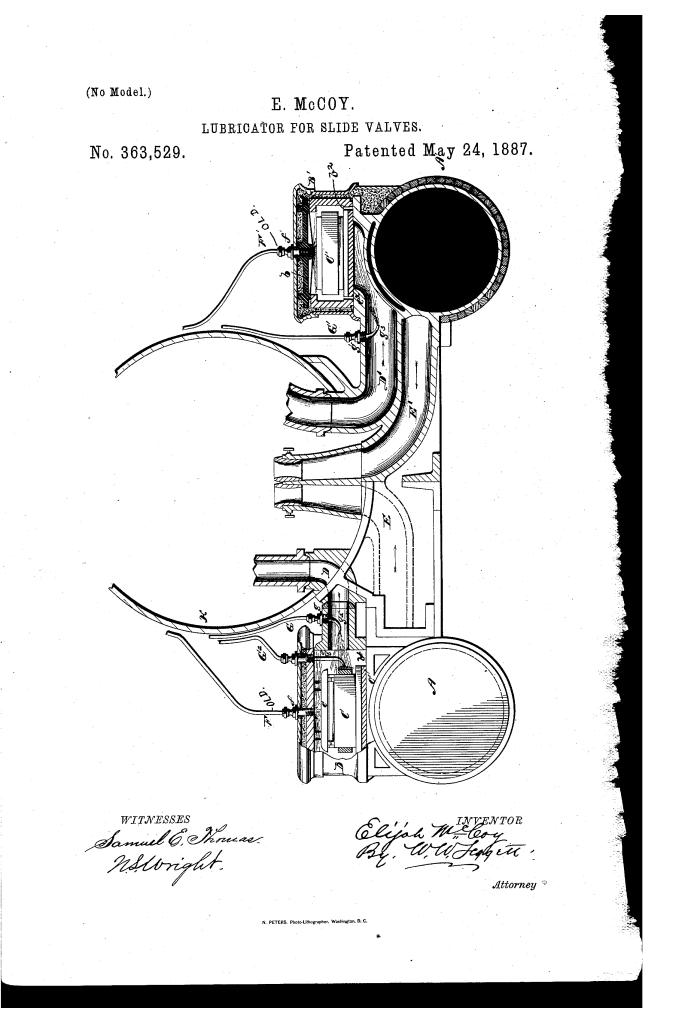

Elijah McCoy was granted U.S. Patent 363,529 for a “Lubricator for Slide-Valves” on May 24, 1887. This patent addressed a major problem of inefficiency and waste in lubricating locomotive engines. Prior to his invention, oil was delivered through a conduit that simply opened into the top of the steam chest. This caused the oil to spread across the chest’s interior walls, where it wasn’t needed, resulting in immense waste.
McCoy’s solution was a targeted delivery system for the oil:
- Direct Injection: His invention involved running the oil conduit to a point inside the steam inlet pipe or to a location adjacent to the valve itself. The conduit ended with a nozzle that was bent to direct the oil as a fine spray.
- Efficient Delivery: The blast of steam would atomize this oil spray and propel it directly onto the slide valves and their seats, where lubrication was most needed. This eliminated the waste of oil on the steam chest’s interior walls.
- Heat Protection: By bringing the conduits closer to the smoke arch, the invention also utilized the engine’s heat to prevent the oil from freezing in cold weather.
Societal Impact and Legacy
This patent is a powerful testament to McCoy’s genius. He not only invented a better product but also solved a complex engineering problem that led to massive economic savings.
- Economic Efficiency: McCoy’s patent claimed a potential saving of over 1,600 square inches of “waste oiling” in a single steam-chest. This translated to significant savings in expensive lubricant for railroad companies, as a much smaller amount of oil was needed to do the job effectively.
- Industrial Innovation: This patent demonstrates McCoy’s deep understanding of the physics of steam engines and his ability to apply that knowledge to create a superior product. His continuous improvements to his lubricator designs were a major factor in the widespread adoption of his inventions.
- The “Real McCoy”: The superior quality and thoughtful design of his lubricators, which were far more effective than the numerous imitations, are widely believed to be the origin of the phrase “The Real McCoy”.
- The Inventor’s Legacy: Elijah McCoy was a brilliant African American inventor who, despite immense racial discrimination, became a foundational figure in American industrial technology. His numerous patents were critical to the development of the railroad system and factory machinery.
