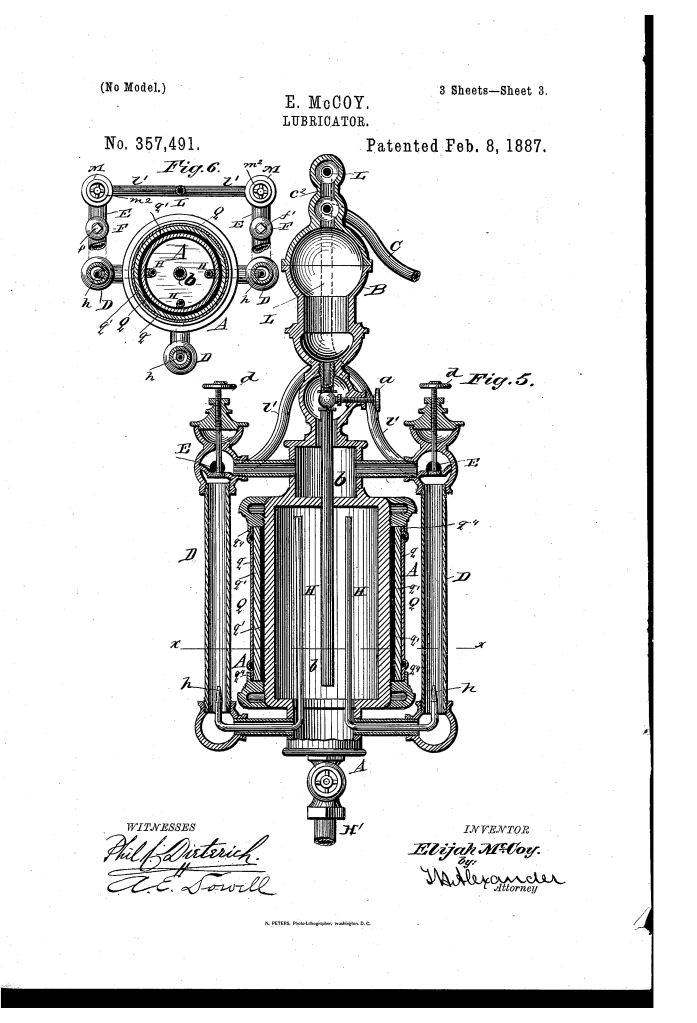

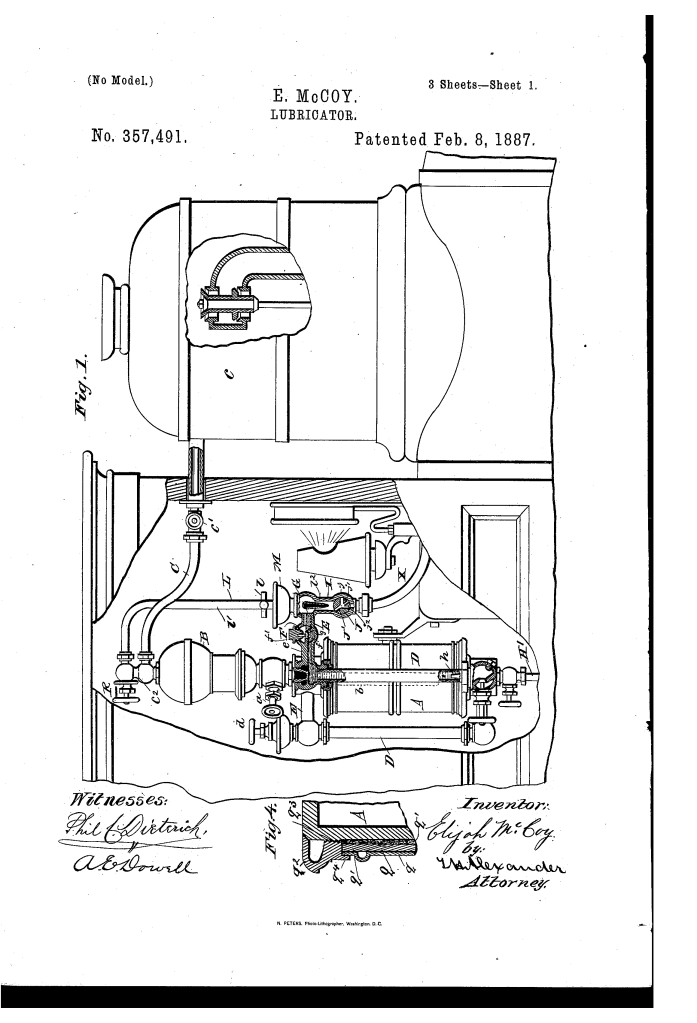

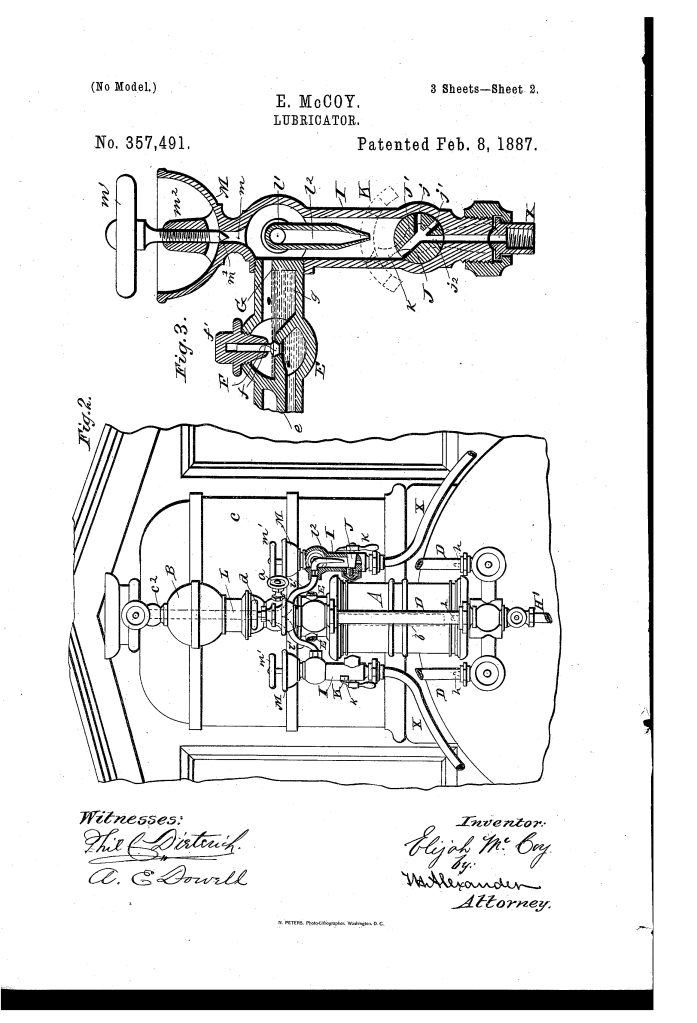

Elijah McCoy was granted U.S. Patent 357,491 for a “Lubricator” on February 8, 1887. This invention was an extremely advanced and refined lubricator system, particularly designed for locomotives. It was an improvement upon a previous patent he had filed with Clarence B. Hodges. The primary goal was to address a range of issues related to lubrication, including a more consistent feed, preventing clogging, and protecting the device from environmental factors.
Key innovations included:
- Complex Steam Equalization: McCoy’s design featured a highly-refined system to ensure steam was delivered cleanly and consistently to the lubricator. A pipe from the steam dome of the locomotive rose to a point much higher than its exit from the dome before connecting to the condenser. This design ensured that water condensed in the pipe would drain back into the dome, keeping the steam supply clean.
- Water-Packed Check-Valve: A key feature was the water-packed check-valve, which was designed to prevent oil and impurities from clogging the valve. The valve was submerged in a small reservoir of water, which kept the check-valve and other parts clean.
- Protective Covering: The patent also described a special covering for the oil reservoir, consisting of layers of non-conducting material and an outer sheet of metal. This covering was secured with screw rings and was designed to protect the oil from extreme temperatures, preventing it from thickening in the cold or becoming too hot.
- Multi-Way Valve: A three-way valve was included with a curved scale and a pointer arm. This allowed the engineer to precisely set the flow of oil to different parts of the engine.
Societal Impact and Legacy
This patent is a powerful testament to McCoy’s dedication to perfecting his inventions. It shows that he was not only a brilliant inventor but a masterful engineer who understood the complex operational needs of his customers.
- Enhanced Reliability and Durability: The combination of a clean steam supply, a water-packed valve, and a protective covering made this lubricator incredibly reliable and durable. This reduced the frequency of maintenance and the risk of costly engine failures.
- Industrial Precision: The use of a three-way valve with a precise scale allowed for a level of control and efficiency that was far beyond what was available at the time. This innovation was crucial for maximizing the performance of locomotives and other steam-powered machinery.
- The “Real McCoy”: This patent is a crucial part of the story of the origin of the phrase “The Real McCoy”. The superior quality, durability, and functionality of his products made them the gold standard in the industry, and engineers insisted on using his authentic inventions over the numerous knockoffs.
- The Inventor’s Legacy: Elijah McCoy was a brilliant African American inventor who, despite immense racial discrimination, became a foundational figure in American industrial technology. His numerous patents were critical to the development of the railroad system and factory machinery.
