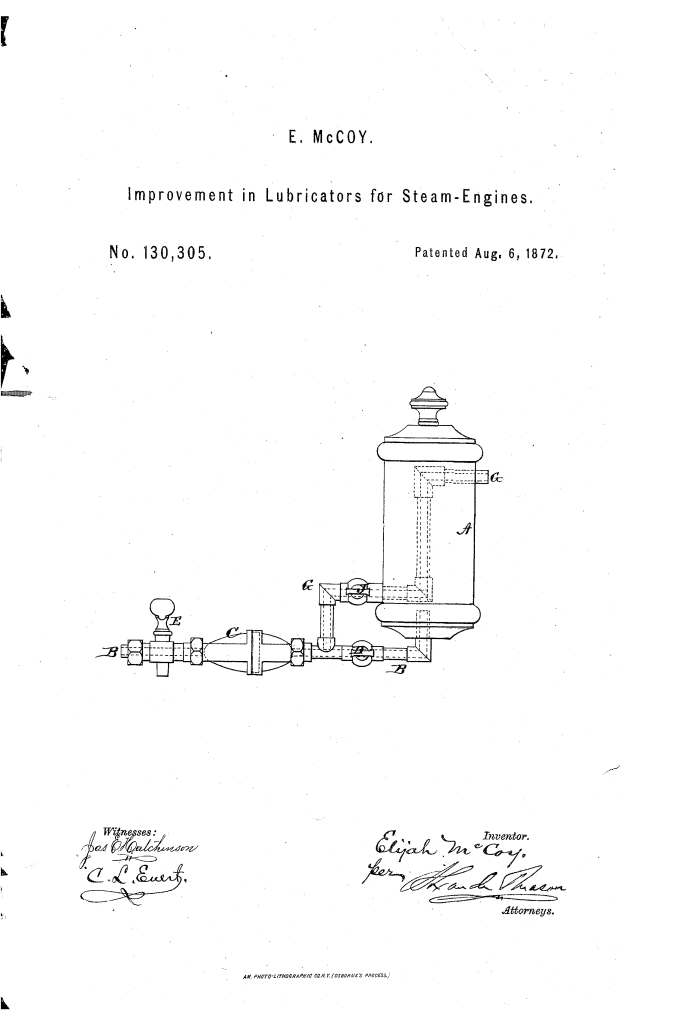

Elijah McCoy’s patent for a “Lubricator for Steam-Engines”, No. 130,305, describes a manually operated lubrication system designed to provide a controlled flow of oil. Patented on August 6, 1872, just two weeks after his first patent, this invention was an improvement that focused on reliability and control.
Invention Details
The system featured a series of pipes and valves that could be controlled from the engineer’s cab.
- Controlled Oiling: The device had an oil vessel, a reservoir, and a steam pipe that ran from the boiler through the oil vessel to the reservoir. A series of stopcocks controlled the flow of oil and steam.
- Manual Operation: To lubricate, the engineer would close one valve to fill the reservoir with oil and then open two others to allow steam to force the oil into the cylinder.
- Cold Weather Protection: The steam pipe passed directly through the oil vessel, which kept the oil warm and prevented it from freezing or “congealing,” a significant problem in colder climates.
This manual system offered a more controlled and consistent delivery of oil, addressing some of the limitations of fully automatic designs.
Societal Impact and Legacy
This patent, coming so quickly after his first, demonstrated McCoy’s commitment to continuously improving his work.
- Enhanced Reliability and Efficiency: The ability to keep the oil warm was a crucial innovation for locomotives operating year-round. This ensured that the engine could be properly lubricated in any weather, improving performance and reducing the risk of friction-related damage.
- Foundational Industrial Technology: Both of McCoy’s initial patents were foundational pieces of technology for the industrial world. They contributed to the improved reliability of steam engines, which were the driving force of the era’s economy.
- “The Real McCoy”: The superior quality of McCoy’s inventions was well-known in the industry. As with his other patents, this lubricator was far more effective than the many knockoffs on the market. This reputation for excellence is widely believed to be the origin of the popular phrase “The Real McCoy.”
- The Inventor’s Legacy: Elijah McCoy was a prolific African American inventor who, despite immense racial discrimination, became a central figure in American industrial innovation. He received over 50 patents, and his work in automatic lubrication was a crucial contribution to the efficiency and safety of the American railroad system and industrial machinery.
